high alumina refractory brick
Model Number:
Certification:
Minimum Order Quantity:

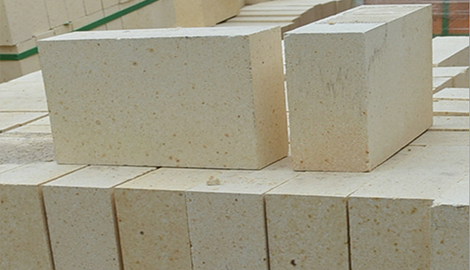

SK34 SK36 SK38 SK40 high alumina refractory brick made in China
Product introduction
1. Product definition:
High alumina firebrick is a kind of alumina silicate refractory whose content of alumina is not less than 55%.By alumina content of bauxite or other alumina
High raw materials are formed by moulding and calcining.
2. Product features:
Thermal stability, high refractoriness in above 1790 ℃, high refractoriness under load can reach above 1480 °, good slag resistance, good thermal shock stability,
Acid and alkali resistance, high temperature creep rate low, high temperature strength characteristics, belong to the high refractory.
3. Product classification:
High-alumina bricks are generally divided into four grades according to different content of alumina
4. Product use:
The first-grade high-alumina firebrick is mainly used for electric furnace cover (top), blast furnace (body), hot air furnace partition wall, steel ladle lining and steel barrel.
The inner lining of various thermal kilns, such as iron water truck, cement kiln, glass kiln, etc.Widely used in ironmaking, steelmaking, chemical industry, cement and other industries.
Physical and chemical index
| Items |
Technical Data |
||||
|
International code name |
SK35 |
SK36 |
SK37 |
SK38 |
SK40 |
|
Chinese code name |
LZ-48 |
LZ-55 |
LZ-65 |
LZ-75 |
LZ-80 |
|
Al2O3 min % |
48 |
55 |
65 |
75 |
80 |
|
Fe2O3 max % |
2 |
2 |
2 |
2 |
2 |
|
Refractoriness oC min. |
1750 |
1770 |
1790 |
1790 |
1790 |
|
Refractoriness under Load C min. |
1420 |
1470 |
1500 |
1520 |
1530 |
|
Permanent Linear Change % |
1450 C×2h |
1500 C×2h |
1500 C×2h |
1500 C×2h |
1500 C×2h |
|
+0.1~-0.4 |
+0.1~-0.4 |
+0.1~-0.4 |
+0.1~-0.4 |
+0.1~-0.4 |
|
|
Apparent Porosity max. % |
22 |
22 |
23 |
23 |
21 |
|
Cold Crushing Strength mim. |
39 |
44 |
49 |
54 |
65 |
Note :
Size Tolerance : + / - 1.5 % or + / - 2 Mm Which Ever is Greater
Above Specified Values Relate to Machine Pressed Standard Bricks.
P L C Values are for Specimens Heated At Given Temp. for 2 Hours
Production capacity: Our factory actively response to government environmental protection policy, we designed and built the fully automatic controlled high temperature gas tunnel kiln (1700℃), and got capacity of annual output 70,000 tons of high quality refractory products.
Packing details:
★Bricks: Fumigated wooden pallet with log paperboard covered and stainless steel band strapping, the whole outside is wrapped with thermoplastic film. Or carton packaging.
★Wooden pallet size: usually 92*92cm (standard brick)
★Castable: Ton bag with rain film and 25kg bags inside
★Or according to customer’s requirements
Transportation
★Port of dispatch: Tianjin port; Qingdao port
★Delivery time: According to customer’s demand or two sides negotiate
We provide you
★Timely response: Timely response to your inquiry within 24 hours and provide solution.
★Competitive Price: Make the products competitive in your market.
★Free sample: Free sample are offered, trial order are accepted for quality evaluation.
★Strict quality control: We set Quality Management System, from the raw material to finished products, produce high quality products according to chemical & physical specifications strictly to satisfy customers’ needs.
★Fast delivery time: Within 3-30 days according to your quantity after receiving your advance payment.
★ Professional services: Provide pictures from order to delivery. Inspect report by our country’s designated authority and oversea services if necessary.
We are here for you!
Certification: (ISO 9001:2015)
Please Feel free to give your inquiry in the form below. We will reply you in 24 hours..
