Hot Blast Stove Used High Alumina Low Creep Refractory Ball
Model Number:
Certification:
Minimum Order Quantity:
Our company is the earlier one of several factories only to produce refractory balls. Refractory ball is one of patent products.and developed by us with great concentration for 10 years.
Refractory ball were efficiently used in iron and steel factory in China,such as Kunming steel , Jiuquan Steel, Liuzhou steel, Daye steel,etc., and wined good praise from customers.
Product Description:

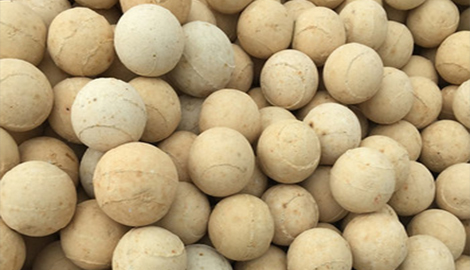

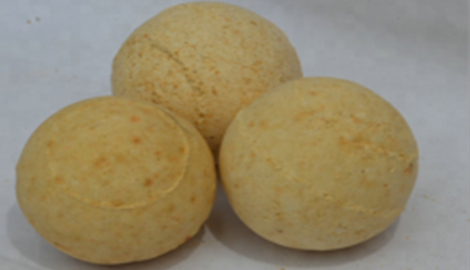

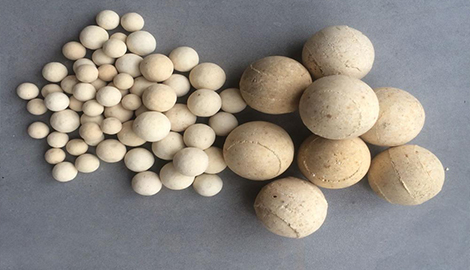

Refractory balls are made of industrial alumina and refractory kaolin as the main raw materials, which are made by scientific formula, forming and hightemperature calcination.
Refractory porcelain ball is divided into ordinary refractory ball and high aluminum resistance ball. Refractory porcelain ball high temperature resistance to high temperature can reach 1900 degrees, high mechanical strength and long-term use.
Hot Blast Stove Used High Alumina Low Creep Refractory Ball Manufacture
Features of Refractory Ball
1. high temperature resistant performance, the highest heat resistant ceramic ball temperature can reach 1900 degrees;
2. high mechanical strength, long use cycle;
3. good chemical stability, no chemical reaction with the material;
4. good thermal stability, high strength;
Hot Blast Stove Used High Alumina Low Creep Refractory Ball Manufacture
| Item | High alumina ball | Low creep ball | Mullite ball | Corundum ball |
| Size(mm) | 40-80 | 40-80 | 40-80 | 40-80 |
| AL2O3(%) | 65 | 70 | 75 | 95 |
| Refractoriness under load(°C) | 1450 | 1460 | 1530 | 1650 |
| Apparent Porosity(%) | 25 | 23 | 22 | 18 |
| Bulk Density(g/cm3) | 2.3 | 2.4 | 2.5 | 3.1 |
| Cold crushing strength(Mpa) | 13 | 14 | 32 | 36 |
|
Thermal shock resistance (1100°Cwater cooling) cycle ≥ |
15 | 10 | 20 | 7 |
| Refractoriness(°C) | 1710 | 1750 | 800 | 1800 |
Hot Blast Stove Used High Alumina Low Creep Refractory Ball Manufacture
Refractory ball application in chemical fertilizer plant of high and low temperature transformation furnace, reformer, hydrogenation, desulfurization tank and methanationfurnace, dispersed liquid, and supporting, covering and protecting catalyst role, can also be used in heating furnace of iron and steel industry and the transformation of equipment, ordinary refractory ball suitable for sulfuric acid and fertilizer industries converter and transform furnace, high aluminum refractory ball is suitable for industries such as steel, urea, hot blast furnace, heating and transformation furnace and other equipment.
Production capacity: Our factory actively response to government environmental protection policy, we designed and built the fully automatic controlled high temperature gas tunnel kiln (1700℃), and got capacity of annual output 70,000 tons of high quality refractory products.
Packing details:
★Bricks: Fumigated wooden pallet with log paperboard covered and stainless steel band strapping, the whole outside is wrapped with thermoplastic film. Or carton packaging.
★Wooden pallet size: usually 92*92cm (standard brick)
★Castable: Ton bag with rain film and 25kg bags inside
★Or according to customer’s requirements
Transportation
★Port of dispatch: Tianjin port; Qingdao port
★Delivery time: According to customer’s demand or two sides negotiate
We provide you
★Timely response: Timely response to your inquiry within 24 hours and provide solution.
★Competitive Price: Make the products competitive in your market.
★Free sample: Free sample are offered, trial order are accepted for quality evaluation.
★Strict quality control: We set Quality Management System, from the raw material to finished products, produce high quality products according to chemical & physical specifications strictly to satisfy customers’ needs.
★Fast delivery time: Within 3-30 days according to your quantity after receiving your advance payment.
★ Professional services: Provide pictures from order to delivery. Inspect report by our country’s designated authority and oversea services if necessary.
We are here for you!
Certification: (ISO 9001:2015)
Please Feel free to give your inquiry in the form below. We will reply you in 24 hours..
